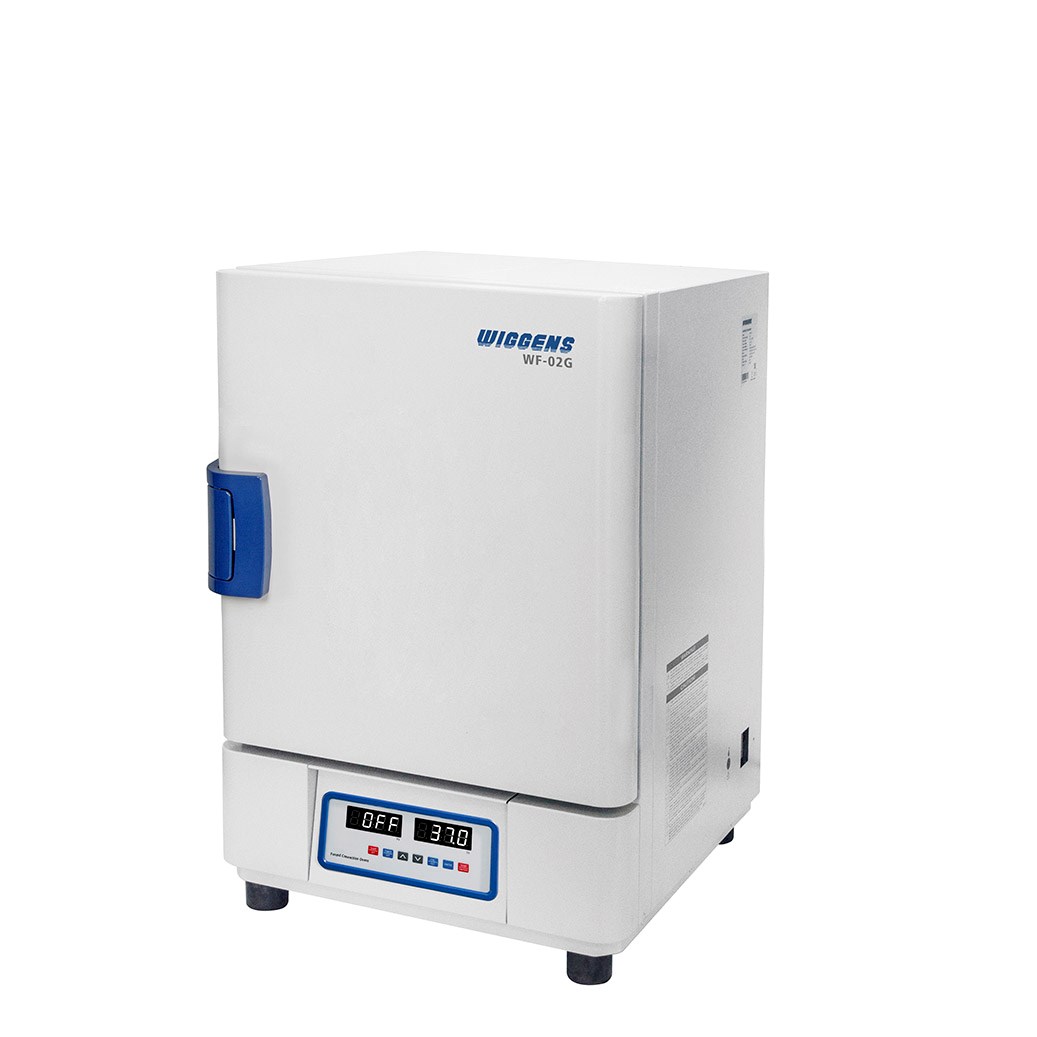

Forced Convection Oven
Model: WF-02G
PRODUCT DESCRIPTION
Ideal for high temperature storage with user-friendly design. WF-G Models are used for all sterilization and drying tasks that do not require high drying rates or special time requirements and ideal for drying applications requiring gentle airflow.FEATURES
- Microprocess PID control / Calibration.
- Over temperature limit protection / Door opening alarm.
- Conveniently preset 3 most commonly used temperature settings.
- Gravity-flow convection with vertical airflow for uniform sample heating.
- Featuring a pull out door handle.
- Rounded inner chamber corners for easy cleaning and better air-flowing.
- Stainless steel interior.
- Two circular adjustable top slide vents help to control inner air vapor circulation (inside diameter 35mm)
Simplifies operation
LED display, easy to operate.
Venting valve
Regulate the air exchange between chamber and outside.
High temperature protection
Alarm when the temperature exceeds the set point..
Wide temperature range
Up to 250 ℃ , even 300 ℃ version is possible.
Uniform distribution
Accurate temperature control and forced convection.
RS232 interface
Remote control by PC software.
SPECIFICATIONS
| Model | WF-02G | |
|---|---|---|
| Chamber Volume（L） | 50 | |
| Temperature | Range（℃） | RT.+10~250 |
| Stability at 100℃（℃） | 0.5 | |
| Dimension (W×D×H) | Interior（mm） | 400×420×420 |
| Exterior（mm） | 540×620×780 | |
| Number of shelves | 2/8 | |
| Weight（kg） | 55 | |
| Power supply | 230V, 50/60 Hz, 4.4A | |
